General

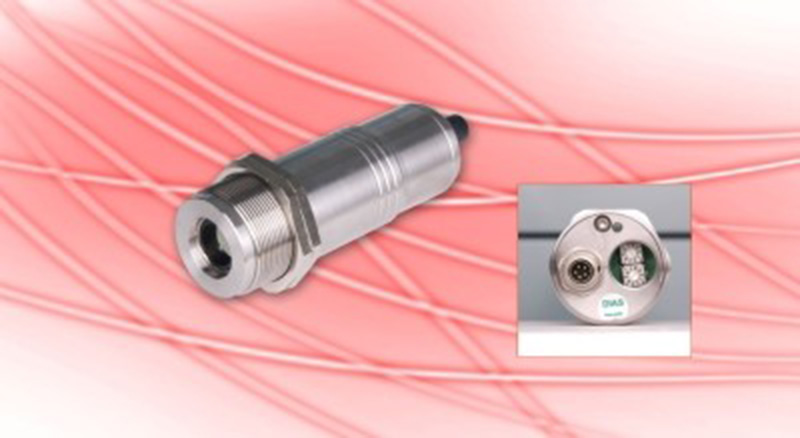

PYROSPOT 42 Serisi

Endistriyel uygulamalar için Almanya da tasarlanmış ve üretilmiş dijital pirometrelerdir.

Endüstriyel uygulamalarda temassız sıcaklık ölçümü için tasarlanmıştır. Farklı spektral ve sıcaklık aralığına sahip modelleri mevcuttur. Yazılımsal ve donanımsal pekçok alternatif uygulama mevcuttur.

The digital pyrometer PYROSPOT of series 42 are developed and manufactured in Germany and are suitable for industrial continuous operation. Different temperature and spectral ranges are available. Customized system solutions including hardware and software adjustments are possible at any time.

What characterizes the devices of PYROSPOT series 42?
•    Emsisivitesi ayarlanabilir sabit dijital pişrometrelerdir.
•    Kolay kullanım için kompak gövde
•    Çok uygun fiyat performans oranı
•    -40, 2500 C arası ölçüm sıcaklığı
•    Entegre veya seçimli lazer hedef gösterici ışık



Technical Specifications

Mevcut Modeller

Model

Spectral range

Temperature range

Optics

DT 42L

8 µm  - 14 µm

-40°C to 1000 °C

Sabitlenmiş optik

DT 42G

around 5 µm

100 °C to 2500 °C

Sabitlenmiş optik

DS 42N

0.8 µm  - 1.1 µm

600 °C to 2500 °C

Sabitlenmiş optik

DG 42N

1.5 µm  - 1.8 µm

250 °C to 1800 °C

Sabitlenmiş optik

Mevcut Aksesuarlar

  • Programlanabilir el terminali DHP 1040
  • Gösterge ve kontrol ünitesi DCU 200
  • Dijital gösterge DD 200/DD 210
  • Mekanik aksesuar kombinasyonları
